Product Description
Hammer union seals are essential components utilized in the
connections of flexible hoses or pipes within the oil drilling
industry. These seals ensure a fluid-tight connection within the
union hardware, which is critical for maintaining system integrity
and preventing leaks.
Hammer unions are composed of three main parts: a threaded end, a
nut end, and a hammer nut. When the hammer nut is tightened, it
compresses the assembly, creating a secure seal with the aid of an
elastomeric seal. The seal is designed with a lip to prevent it
from dislodging when the union is inverted.
Common types of Hammer Unions include:
Threaded Hammer Unions: Available in sizes ranging from 40, 50, and 602 to 1502.
Butt Weld Hammer Unions: Typically available in sizes 602, 1502, and 2202.
Threaded & Butt Weld Hammer Unions: Available in sizes from 100 to 400.
Our current product offerings primarily include union seals
compatible with FIG1502, FIG1002, FIG602, FIG206, and FIG607 styles. Additionally, we have the capability to customize seals
for other types based on provided samples or detailed engineering
drawings.
Detailed Photos
About Union Seal, we can provide:
Union seal with brass ring:The use of brass rings can increase the tightness of the seal,
prevent leakage, and maintain stable performance in long-term use,
extending the service life. In addition, the corrosion resistance
of brass can also ensure that the sealing effect is maintained in
various environments, especially in weak acids, weak alkalis and
salt water.
Union seal with stainless steel ring:It has high corrosion resistance and can resist corrosion from weak
corrosive media such as air, steam, water, and chemical substances
such as acid, alkali, and salt. The strength and corrosion
resistance of stainless steel vary with the alloy elements, and it
has high heat resistance and wear resistance.

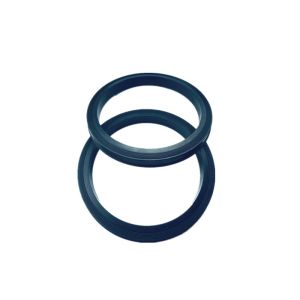

Rubber union seal:Rubber seals have good elasticity and compression memory, and can
adapt to a wide range of temperatures, from extremely low
temperatures to high temperatures. Their manufacturing cost is
relatively low, making them suitable for large-scale production and
application. In low-pressure, low-temperature and normal
temperature environments, rubber seals usually have better sealing
effects than metal seals.
Material Introduction
Material | Temperature range | Temperature range |
|---|
Nitrile | -40ºC to 120ºC
-40ºF to 248ºF | 1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear
properties, and chemical resistance
3.Resistance to most mineral oils and greases |
HNBR
| -40ºC to 160ºC
-40ºF to 320ºF | 1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam resistance to +149ºC(+300ºF)
5.H2S resistance up to 10%
6.Commonly used with petroleum oils and CO2 |
FKM | -26ºC to 230ºC
-15ºF to 446ºF | 1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants
3.Great mechanical properties are retained over a wide temperature
range
4.Commonly used with ammonia |
| PTFE | -268ºC to 250ºC
-450ºF to 483ºF | Vitually universal chemical resistance |
| PU | -54°C to 105°C
-65°F to 220°F | 1.Thermoplastic elastomer with higher tensile strength, toughness,
and wear resistance
2.Great combination of hardness and elasticity 3.Excellent low temperature flexibility 4.Commonly used in high pressure hydraulic systems where parts are
subject to wear |
